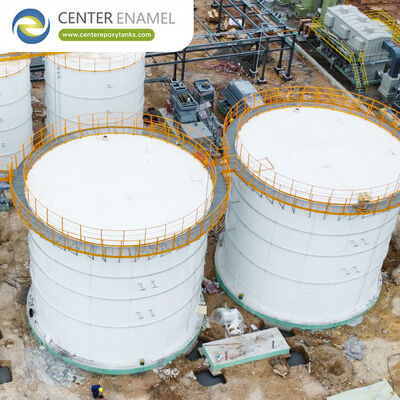

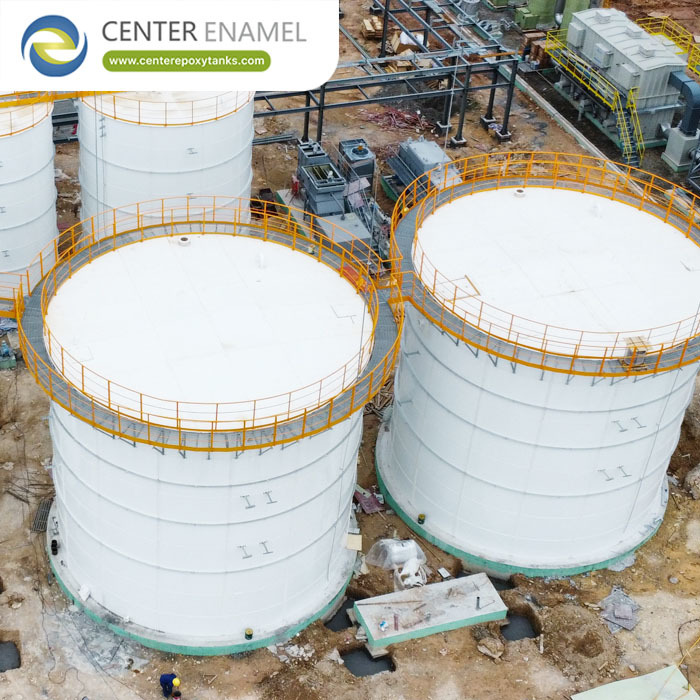

The Engineering Standard for 2026 Bio-Energy: FBE Fermentation Tanks

In the rapidly evolving landscape of renewable energy and organic waste management, the efficiency of a biogas plant is defined by the integrity of its core: the fermentation tank. As of 2026, Fusion Bonded Epoxy (FBE) fermentation tanks have become the industry standard for anaerobic digestion, offering a strategic balance of chemical resilience, modular scalability, and rapid deployment.

1. What is an FBE Fermentation Tank?

An FBE fermentation tank is a modular, bolted steel reactor designed to facilitate the biological breakdown of organic matter (biomass) in the absence of oxygen. The steel panels are factory-coated with a high-performance thermoset epoxy resin.

The Fusion Bonded Epoxy process involves electrostatically applying dry powder to pre-heated steel plates (typically between 180°C and 230°C). This thermal fusion creates a molecularly cross-linked barrier that is permanently bonded to the steel substrate. The result is a non-porous, high-density lining that is specifically engineered to handle the corrosive environment of an active fermentation process.

2. Technical Performance: Navigating the Fermentation Environment

Anaerobic fermentation is a volatile chemical process. FBE technology addresses the specific challenges of the "Biogas Zone" through several key performance metrics:

Resistance to Biogenic Sulfuric Acid

During fermentation, the production of Hydrogen Sulfide ($H_2S$) gas reacts with moisture to form sulfuric acid. This is devastating to concrete and standard paints. FBE coatings are chemically inert and remain stable across a wide pH range (typically 3 to 11), providing a robust shield against acid erosion.

Thermal Stability for Precise Digestion

Efficient methane yield requires precise temperature control—either Mesophilic (approx. 35°C) or Thermophilic (approx. 55°C). FBE tanks are easily integrated with high-efficiency insulation and heating systems. Their smooth internal surface also reduces "sludge hanging," improving the hydraulic efficiency of the agitation process.

Zero-Discontinuity Quality Assurance

A single pinhole in a fermentation tank can lead to localized corrosion and gas leaks. Every FBE panel undergoes high-voltage Holiday Testing (> 1100V) at the factory to ensure a 100% defect-free barrier before it reaches the project site.

3. Comparison: FBE vs. Concrete vs. Stainless Steel

4. Strategic Integration with Anaerobic Processes

FBE technology is the backbone of advanced fermentation workflows that maximize energy recovery:

• CSTR (Completely Stirred Tank Reactor): Ideal for high-solid organic waste like kitchen waste and animal manure. The structural precision of FBE tanks allows for the seamless integration of heavy-duty top-entry or side-entry mixers.

• UASB (Upflow Anaerobic Sludge Blanket): Used for industrial wastewater energy recovery. The bolted design allows for the precise internal installation of three-phase separators.

• USR (Upflow Solid Reactor): Specifically engineered for feedstocks with high suspended solids, common in agricultural biomass projects.

5. Global Engineering Standards (2026)

To ensure long-term structural integrity and safety, FBE fermentation tanks from reputable manufacturers like Shijiazhuang Zhengzhong Technology (Center Enamel) adhere to the following:

1. AWWA D103-19: The global standard for factory-coated bolted carbon steel tanks.

2. ISO 28765:2016: Governing high-performance coatings for industrial treatment and storage.

3. ASCE 7-22: Structural design for seismic resilience and wind loads up to 250 km/h.

4. ISO 9001: Quality management system for the entire manufacturing process.

The Sustainable Choice for ROI

For renewable energy developers looking to maximize their Return on Investment (ROI), the FBE fermentation tank is the definitive choice for 2026. By eliminating the risks of structural cracking associated with concrete and the high maintenance of field-painted steel, FBE technology ensures that your bio-energy assets remain safe, efficient, and profitable for decades.

Are you evaluating fermentation storage for a specific feedstock, such as palm oil mill effluent (POME) or municipal kitchen waste, and would you like a technical proposal for your volume requirements?
